Integration

Rest API

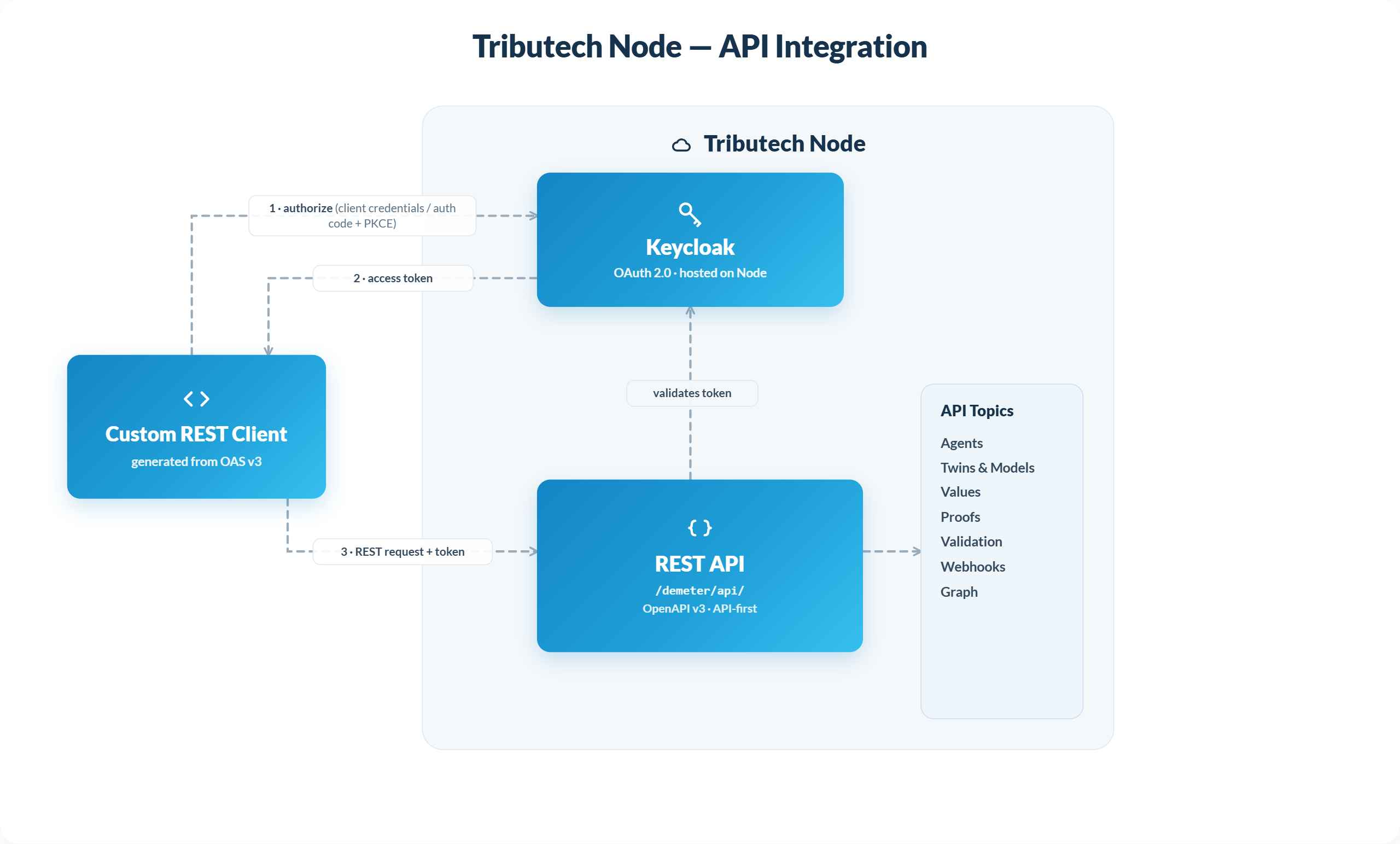

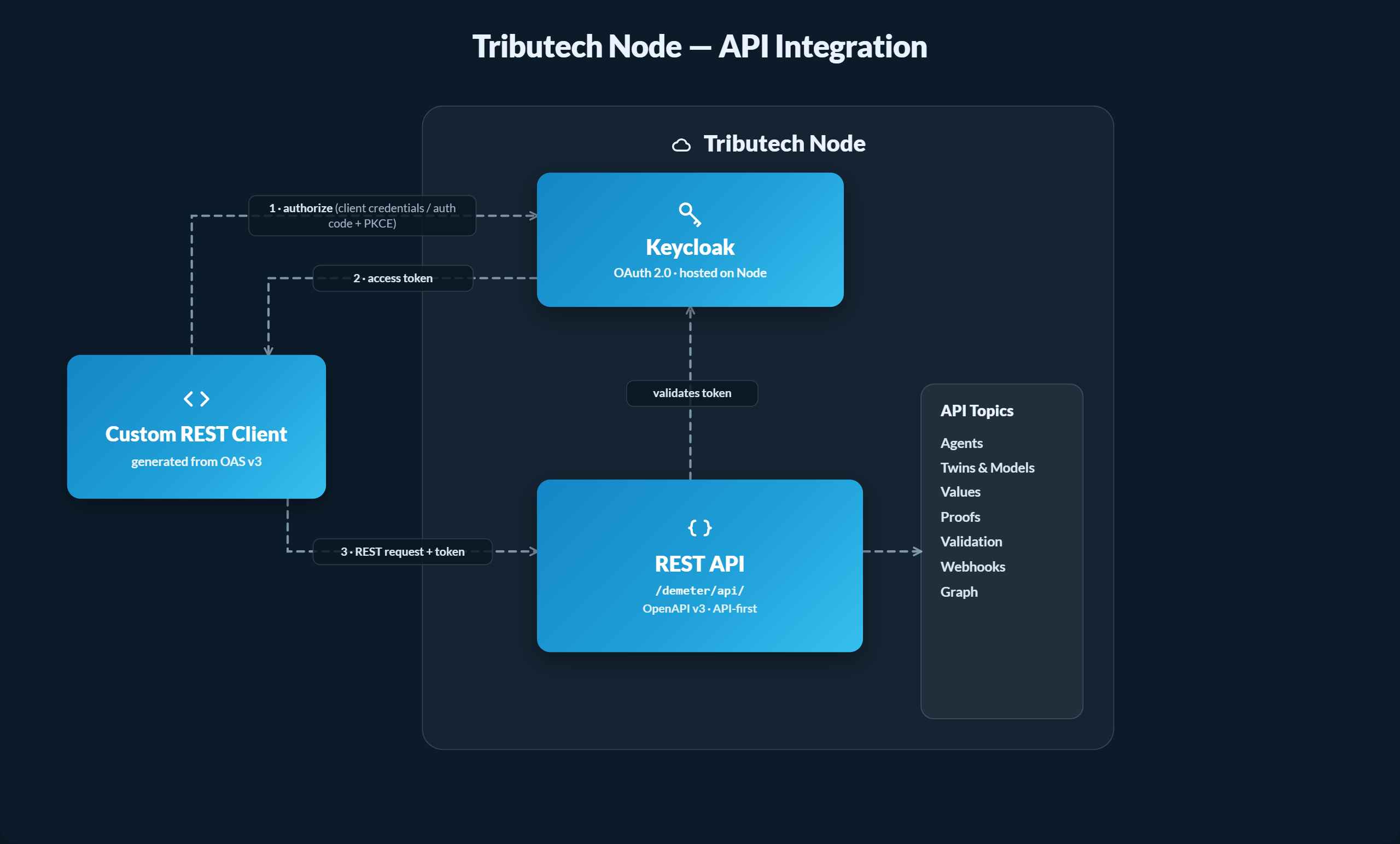

Our REST API provides the interfaces as OAS V3 which can be used to generate REST API clients for multiple languages.

The api is generally reachable via the url <your-node-url>/demeter/api/ there you can find the json document and a swagger doc website with an general overview of the rest api endpoints.

The API is structured with following "Topics" :

• Agent provides all management regarding a single Tributech Agent
• Agents for query propose of multiple agents
• Credentials to fetch the credentials of the api, docker registry etc...
• Graph provides the Twin Configuration Instance as graph
• Model fetching DTDL Model Information
• ModelManagement CRUD Methods for the DTDL Models
• Relationships CRUD Methods for the Relationships between DTDL Instances
• Twins CRUD Methods for DTDL Instances
• Validation Validation for DTDL Models
• WebHookSubscription CRUD Methods for Webhook related Subscriptions
• WebHookTopic Query all available Webhook Events
• Values Fetch or Insert Values from or to the Node
• Proofs Validate , insert or fetch proofs from the Node

To do some example request just visit the above url, authorize yourself (see below) and try it out !

Authorization

Our API Authorization is handled via a Keycloak instance. We support following authorization flows :

• Client Crediential Flow (for api access)
• Authorization Code Flow with PCKE (sha256) (for browser)

Both can be configured within the Keycloak instance hosted on our Tributech Node Instance.

We provide no user or group permissions for our node.

In general following urls are used for authorization and token :

• Authorization: https://auth.<your-tributech-node-url>/realms/node/protocol/openid-connect/auth
• Token: https://auth.<your-tributech-node-url>/realms/node/protocol/openid-connect/token

Client Id and Client Credentials can be retrieved by our Node website or on request.

Example Request done with Insomnia

Authorization Flow

Client Credential Flow
